PHBE-2A | JBC

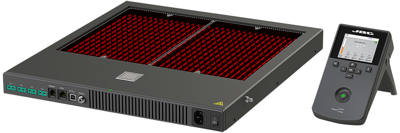

Pre-Heating Plate PHBE-2A, PHBE-2A
Order No.: 10L6350
EAN: 8427327457928
MPN:
PHBE-2A
This item is no longer available.
As an alternative, we recommend the following item:
Preheating plate, PHBE-2A, JBC
The PHBE has three working modes: The power mode allows working with a fixed power level with the possibility of using protection thermocouples.
The temperature mode keeps the circuit board at a selected temperature, using the control thermocouple and optional protection thermocouples.
The profile mode allows the heating rate of the PBCA to be controlled by using control and protection thermocouples without exceeding the recommended limits in any application.
The unit has three recommended pre-defined profiles:
- Für 1,6 mm Leiterplatte mit 2 Lagen
- For 1.6 mm PCB with 4-6 layers
- For 2.2 mm boards with 6 or more layers
It also has 22 customizable profiles. Up to four thermocouples can be connected, allowing the operator to work in one of three working modes.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 250 °C | |
| Power | 1800 W | |
| Rated voltage | 230 V | |
| Product type | preheating plate |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85159080 |
| Country of origin | ES |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
