PBV-R100-F1-1.0 | Isabellenhütte
Metal Film Resistor, 100 mΩ, 3 W, ±1 %
Active
Product by Isabellenhütte at Bürklin Elektronik

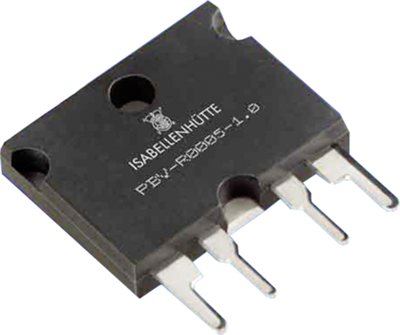

Precision metal film resistors, 3.0/10 W. tolerance 1.0 %, series ISA-PLAN, type Isabellenhütte PBV..F1.
With four-wire connection. Conceived especially for use in the low-resistance range to ensure minimum temperature coefficients and independence of the resistor value from soldering quality. The design is widely compatible with modern power transistors. A center mounting hole is used to mount the resistor on a heatsink in order to optimize heat transfer via the large base plate
| ohmic resistance | 0.1 Ω | |
| Version | Precision metal film resistor | |
| Design | radial | |

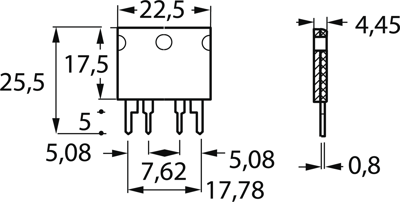

| Width | 4.45 mm | |
| Height | 17.5 mm | |
| Isolation voltage | 500 V | |
| Length | 22.5 mm | |
| Power | 3 W | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| nominal load capacity without cooling surface | 10 W | |
| Temperature coefficient | 30 ppm/K | |
| Tolerance | ±1 % |
| Country of origin | DE |
| Customs tariff number | 85332100 |
| Original Packaging | Bar with 25 pieces |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
