PBV-R022-F1-1.0 | Isabellenhütte

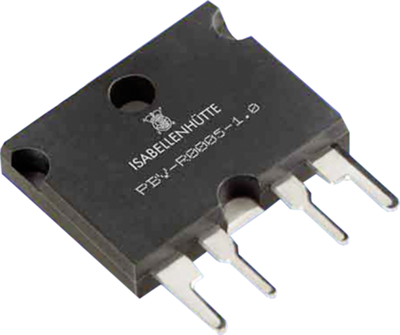

Metal film resistor, 22 mΩ, 3 W, ±1 %, PBV-R022-F1-1.0
Unit Price (€ / pc.)
12.3760 € *
Standard delivery time from the manufacturer is: 2 Weeks
Precision metal film resistor, 3.0/10 W. tolerance 1.0 %, series ISA-PLAN, type Isabellenhütte PBV.F1.
With four-wire connection. Conceived especially for use in the low-resistance range to ensure minimum temperature coefficients and independence of the resistor value from soldering quality. The design is widely compatible with modern power transistors. A center mounting hole is used to mount the resistor on a heatsink in order to optimize heat transfer via the large base plate.
Features
- 4-terminal connection
- Excellent long-term stability
- RoHS compliant
Applications
- Power modules
- Frequency converters
- Switch mode power supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 3 W | |
| Isolation voltage | 500 V | |
| Temperature coefficient | 30 ppm/K | |
| max. operating temperature | 125 °C | |
| Tolerance | ±1 % | |

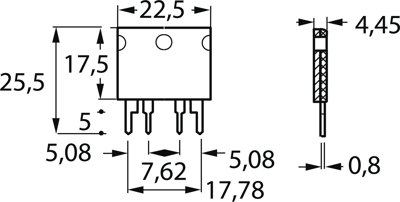

| Length | 22.5 mm | |
| Height | 17.5 mm | |
| Assembly | THT | |
| Width | 4.45 mm | |
| min. operating temperature | -55 °C | |
| nominal load capacity without cooling surface | 10 W | |
| Design | radial | |
| ohmic resistance | 22 mΩ | |
| Version | precision metal film resistor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bar with 25 pieces |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
