HBT99-40.0-2/0-F | IS-Cabletec

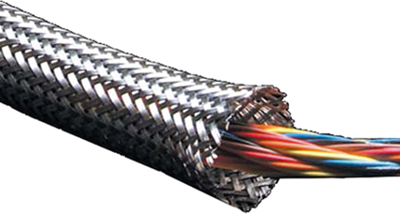

Metal braided sleeve, inner Ø 40 mm, range 36-62 mm, silver, -65 to 150 °C, HBT99-40.0-2/0-F
Unit Price (€ / mtr.)
40.3886 € *
Available: 50 mtr.
Total Price:
40.39 € *
Price list
Quantity
Price per unit*
1 mtr.
40.3886 €
10 mtr.
37.3541 €
50 mtr.
34.3315 €
100 mtr.
32.3085 €
500 mtr.
29.2859 €
*incl. VAT plus shipping costs
Subject to prior sale
Shielding braid with 99% coverage, type Cabletec HBT99-.
Made of tinned copper wire. High degree of EMI protection in wire and cable harnesses. Coverage min./max; .: 96 %/99 %. Operating temperatures: –65 to +150 °C.
Mit verzinntem Kupferdraht, Temperaturbereich –65 bis +150 °C.
Technical attributes (type, inner diameter ID, application range AR): HBT99-40.0-2/0-F, ID 40, AR 36 to 62 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | metal braided sleeve | |
| Inner diameter | 40 mm | |
| Application range | 36-62 mm | |
| Colour | silver | |
| Material | copper, tin-plated | |
| Halogen free | No | |
| Optical Coverage | 93 % | |
| min. operating temperature | -65 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 74130000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
