HBT99-04.0-3/0-F | IS-Cabletec

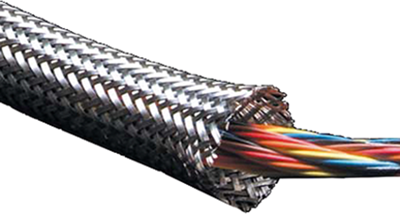

Metal braided sleeve, inner Ø 4 mm, range 3-8 mm, silver, -65 to 260 °C, HBT99-04.0-3/0-F
Unit Price (€ / mtr.)
4.4744 € *
Available: 176 mtr.
Total Price:
4.47 € *
Price list
Quantity
Price per unit*
1 mtr.
4.4744 €
10 mtr.
3.9270 €
100 mtr.
3.4510 €
250 mtr.
3.3201 €
1000 mtr.
3.1059 €
*incl. VAT plus shipping costs
Subject to prior sale
Shielding braid with 99% coverage, type Cabletec HBT99-.
High degree of EMI protection, for the elimination of interference on wire bundles and cable harnesses. Coverage min./max; .: 96 %/99 %.
With nickel-plated copper wire, temperature range from –65 to +260 °C.
Technical attributes (type, inner diameter (ID), application range (AR)): HBT99-04.0-3/0-F, ID 4.0, AR 3.0 to 8.0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | metal braided sleeve | |
| Inner diameter | 4 mm | |
| Application range | 3-8 mm | |
| Colour | silver | |
| Material | copper, nickel-plated | |
| Halogen free | No | |
| Optical Coverage | 93 % | |
| min. operating temperature | -65 °C | |
| max. operating temperature | 260 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74130000 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
