EP4CE6E22C8N | INTEL

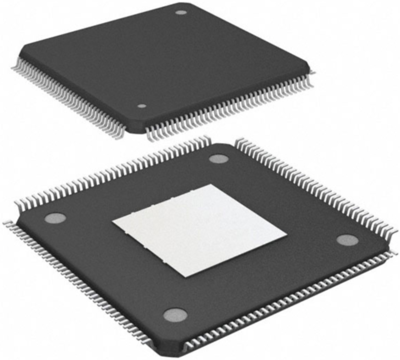

FPGA, Cyclone IV E, INTEL EP4CE6E22C8N, EQFP-144
Unit Price (€ / pc.)
10.6267 € *
Available in 5 Days: 215 pcs. - if ordered today
Total Price:
10.63 € *
Price list
Quantity
Price per unit*
1 pcs.
10.6267 €
60 pcs.
9.7342 €
*incl. VAT plus shipping costs
Subject to prior sale
FPGA, EP4CE6E22C8N, Intel
The EP4CE6E22C8N is targeted to high-volume, cost-sensitive applications, also this product is ideal for small-form-factor applications in the wireless, wireline, broadcast, industrial, consumer, and communications industries.
Features
- Low-cost, low-power FPGA fabric
- Data rates up to 3.125 Gbps
- Up to eight phase-locked loops (PLLs) per device
- Serial Advanced Technology Attachment (SATA) (up to 3.0 Gbps)
- Protocol bridging applications for under 1.5 W total power
Applications
- High volume applications
- Cost sensitive applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | EQFP-144 | |
| Assembly | SMD | |
| Number of LABs/CLBs | 392 | |
| Number of logical elements | 6272 | |
| Memory size | 276.48 kbit | |
| Number of I/Os | 91 | |
| Voltage | 1.15-1.25 V | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 60 pieces |
| Customs tariff number | 85423990 |
| MSL | MSL 3 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
