54412.3LOS2-CPR | INFRALAN

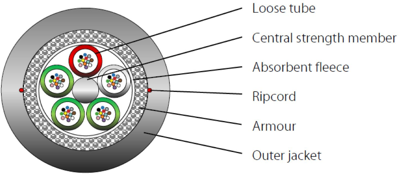

Fiber optic cable, singlemode 9/125 µm, fibres: 12, G657.A1, LSZH, black
Order No.: 26P1177
EAN: 4049759235468
MPN:
54412.3LOS2-CPR
Unit Price (€ / mtr.)
3.7128 € *
Available: 0 mtr.
Leadtime: On Request **
Fiber optic cable, 54412.3LOS2-CPR, INFRALAN
The 54412.3LOS2-CPR is a universale cable for fixed installation indoor and outdoor in cable ducts, tubes and interconnections. Mechanical installation by winch is permitted only when using force meters with recording function. It is not suitable for underground laying (direct buried).
Technical specifications
| Number of fibres | 12 | |
| Outer diameter | 11.2 mm | |
| Colour | black | |
| Chamfer type | singlemode 9/125 µm | |
| Halogen free | Yes | |
| Category | G657A1 | |
| Material | LSZH | |
| Temperature range (active) | -40 °C to 80 °C | |
| Temperature range (unmoved) | -5 °C to 60 °C |
Download
Logistics
| Customs tariff number | 85447000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
