BSP75NHUMA1 | Infineon Technologies
MOSFET NFET BSP75N

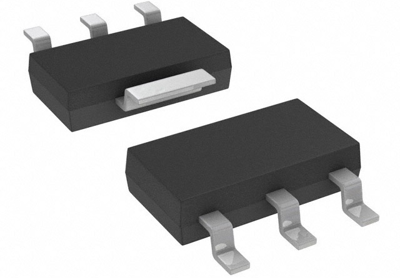

Images may differ
Total price
(
1.2852 €
* / pcs.)
1.29 €
Currently not in stock, we will order for you
Description
Product by Infineon Technologies at Bürklin Elektronik
Low side switch, BSP75NHUMA1, Infineon Technologies
The BSP75NHUMA1 is a N channel vertical power FET that is based on Smart SIPMOS technology. Fully protected by embedded protection functions.
Features
- Logic level input
- Input protection
- Short circuit protection
- Current limitation
Applications
- 24 V applications
- Relay driver
Technical specifications
| Version | N channel | |
| Output current | 700 mA | |
| Enclosure | SOT-223 | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD |
Logistics
| Country of origin | AT |
| Customs tariff number | 85412900 |
| MSL | MSL 3 |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
