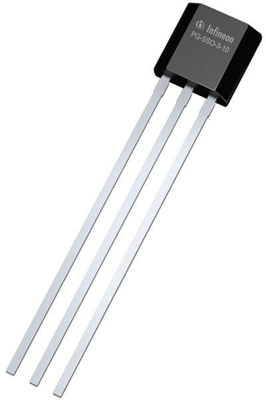

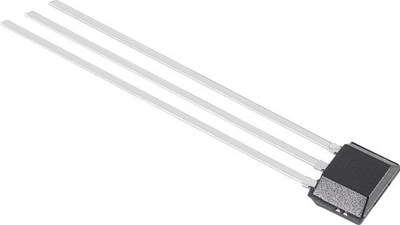

TLE4935L | Infineon Technologies
Hall effect sensor, -15 to 15 mT, 3.8-24 V, TLE4935L, P-SSO-3-2, -40 to 150 °C, TLE4935L
Unit Price (€ / pc.)
1.1662 € *
Available: 36 pcs.
Available in 5 Days: 1,075 pcs. - if ordered today
Total Price:
1.17 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1662 €
25 pcs.
1.0591 €
100 pcs.
0.9758 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor ICs, TLE4935L, Infineon Technologies
Features
- Digital output signal
- For unipolar and alternating magnetic fields
- Large temperature range
- Temperature compensated magnetic performance
- Protection against reversed polarity
- Output protection against electrical disturbances
Applications
- Position/proximity indicators
- Brushless DC motor commutation
- Rotational indexing
- Industrial applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | hall effect sensor | |
| measurement range | -15 to 15 mT | |
| Voltage | 3.8-24 V | |
| Assembly | THT | |
| Enclosure | P-SSO-3-2 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | AT |
| Original Packaging | Reel with 2,000 pieces |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
