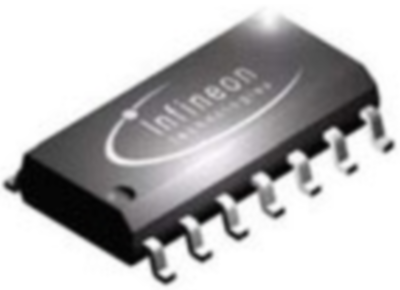

TLE4206GXUMA2 | Infineon Technologies
Driver IC, PDSO14, 8 V, 18 V
Order No.: 49S5382
EAN: 4099879102157
MPN:
TLE4206GXUMA2
Unit Price (€ / pc.)
1.5827 € *
Standard delivery time from the manufacturer is: 17 Weeks
Motor control ICs, TLE4206G, Infineon Technologies
The TLE4206G is a fully protected H-bridge driver designed specifically for automotive headlight beam control and industrial servo control applications.
Features
- Optimized for headlight beam control applications
- Current-peak-blanking
- Low saturation voltage
- Overtemperature protection with hysteresis
- Over- and undervoltage lockout
- No crossover current
- Internal clamp diodes
- Enhanced power packages
Applications
- Automotive applications
- DC motor driver
- Servo driver applications
Technical specifications
| Assembly | SMD | |
| Enclosure | PG-DSO-14 | |
| Output current | 0.8 A | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 150 °C | |
| Input voltage | 18 V |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85423390 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | No |
