SPW47N60C3FKSA1 | Infineon Technologies

Infineon Technologies N channel CoolMOS power transistor, 650 V, 47 A, TO-247, SPW47N60C3FKSA1

Order No.: 24S6272
EAN: 4099879033635
MPN:
SPW47N60C3FKSA1
Series: SPW
Infineon Technologies
SPW47N60C3FKSA1 Infineon Technologies MOSFETs

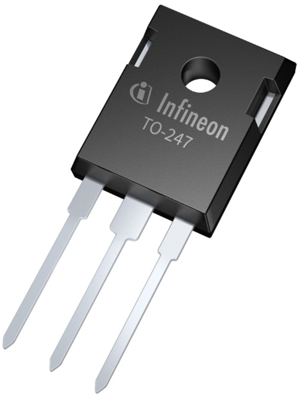

Image may differ
Print
Key Specification:
Version N channel
max. Voltage 650 V
Max. current 47 A
drain-source on resistance RDS (on) max @VGS=10V 70 mΩ
Download Datasheet Technical specifications

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)
11.6144 € *
Available: 65 pcs.
Total Price:
11.61 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
11.6144 €
Description
Technical specifications
Download
Logistics
Compliance

MOSFET, SPW47N60C3FKSA1, Infineon Technologies

Features

  • New revolutionary high voltage technology
  • Extreme dv/dt rated
  • Periodic avalanche rated
  • Ultra low gate charge
  • Ultra low effective capacitances

Applications

  • Server
  • Telecom
  • Consumer
  • PC power
  • Adapter
Technical specifications
Version N channel
max. Voltage 650 V
Max. current 47 A
drain-source on resistance RDS (on) max @VGS=10V 70 mΩ
Enclosure TO-247
Gate Charge Qg @10V (nC) 0.000000252 C
Power loss 415 W
Assembly THT
min. operating temperature -55 °C
max. operating temperature 150 °C
Articles of same specification 0
Logistics
Original Packaging Bar with 30 pieces
Customs tariff number 85412900
Country of origin CN
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
