IRLU024NPBF | Infineon Technologies

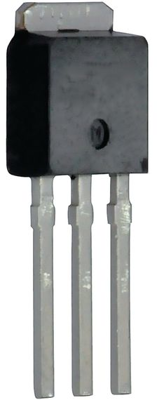

Infineon Technologies N channel HEXFET power MOSFET, 55 V, 17 A, I-PAK, IRLU024NPBF
Unit Price (€ / pc.)
0.6664 € *
Available: 325 pcs.
Available in 5 Days: 2,880 pcs.
Leadtime: 1 Week **
Total Price:
49.98 € *
Price list
Quantity
Price per unit*
75 pcs.
0.6664 €
300 pcs.
0.5831 €
750 pcs.
0.5355 €
1500 pcs.
0.4998 €
3000 pcs.
0.4641 €
*incl. VAT plus shipping costs
**Subject to prior sale
MOSFET, IRLU024NPBF, Infineon Technologies
The IRLU024NPBF is a power MOSFET rectifier that utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area.
Features
- Logic level gate driver
- Advanced process technology
- Fast switching
Applications
- DC motors
- Inverters
- SMPS
- Lighting
- Load switches
- Battery powered applications
Technical specifications
| Version | N channel | |
| drain-source on resistance RDS (on) max @VGS=10V | 65 mΩ | |
| drain-source on resistance RDS (on) max @VGS=4,5V | 110 mΩ | |
| Gate Charge Qg @10V (nC) | 1.5x10<sup>-8</sup> C | |
| Enclosure | I-PAK | |
| max. Voltage | 55 V | |
| Max. current | 17 A | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Power loss | 45 W |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85412900 |
| Original Packaging | Bar with 75 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
