IRLML6302TRPBF | Infineon Technologies

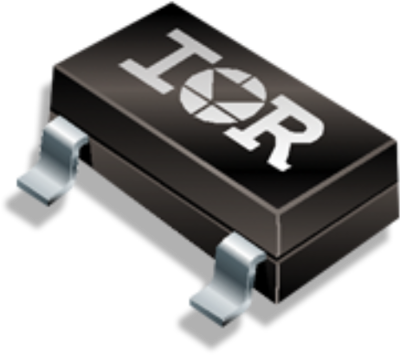

Infineon Technologies P-channel HEXFET power MOSFET, -20 V, -780 mA, SOT-23, IRLML6302TRPBF
Unit Price (€ / pc.)
0.1309 € *
Standard delivery time from the manufacturer is: 98 Weeks
MOSFET, IRLML6302TRPBF, Infineon Technologies
The IRLML6302TRPBF is a power MOSFET rectifier that utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area.
Features
- Generation V technology
- Ultra low on-resistance
- P-channel MOSFET
- Low profile
- Fast switching
Applications
- DC motors
- Inverters
- SMPS
- Lighting
- Load switches
- Battery powered applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power loss | 540 W | |
| Max. current | -780 mA | |
| drain-source on resistance RDS (on) max @VGS=10V | 600 mΩ | |
| max. operating temperature | 150 °C | |
| max. Voltage | -20 V | |
| Gate Charge Qg @10V (nC) | 5x10<sup>-9</sup> C | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| Enclosure | SOT-23 | |
| Version | P-channel |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Original Packaging | Reel with 153,000 pieces |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
