IRL7472L1TRPBF | Infineon Technologies

Infineon Technologies N channel DirectFET power MOSFET, 40 V, 375 A, directFET-L8, IRL7472L1TRPBF

Order No.: 54S1009
EAN: 4099879034694
MPN:
IRL7472L1TRPBF
Series: IRL

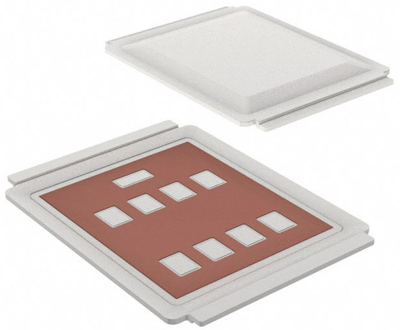

IRL7472L1TRPBF Infineon Technologies MOSFETs Image 1
IRL7472L1TRPBF Infineon Technologies MOSFETs Image 2
Image may differ
Unit Price (€ / pc.)
2.4633 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
2.46 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4633 €
50 pcs.
2.2848 €
250 pcs.
2.1182 €
*incl. VAT plus shipping costs
Subject to prior sale

MOSFET, IRL7472L1TRPBF, Infineon Technologies

Features

  • Optimized for logic level drive
  • Improved gate, avalanche and dynamic dv/dt ruggedness
  • Fully characterized capacitance and avalanche SOA
  • Enhanced body diode dv/dt and di/dt capability
  • Lead-Free, RoHS compliant

Applications

  • Brushed motor drive applications
  • BLDC motor drive applications
  • Battery powered circuits
  • Half-bridge and full-bridge topologies
  • Synchronous rectifier applications
  • DC/DC and AC/DC converters
  • DC/AC Inverters
Technical specifications
Filter Property Value
max. Voltage 40 V
drain-source on resistance RDS (on) max @VGS=10V 0.45 mΩ
max. operating temperature 175 °C
min. operating temperature -55 °C
Gate Charge Qg @10V (nC) 1.33x10<sup>-7</sup> C
Max. current 375 A
Enclosure directFET-L8
Assembly SMD
Power loss 341 W
Version N channel
Logistics
Property Value
Customs tariff number 85412900
MSL MSL 3
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
