IRFS7437TRLPBF | Infineon Technologies

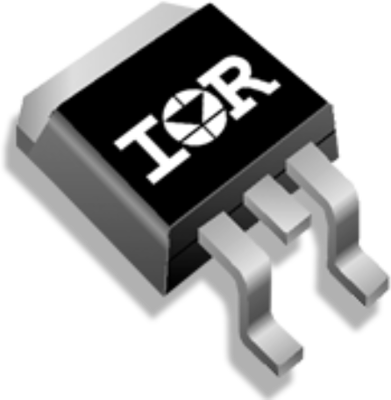

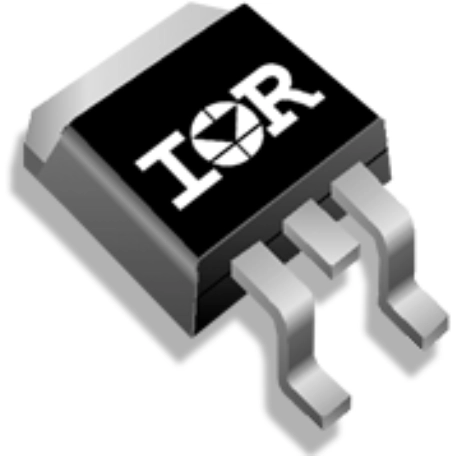

Infineon Technologies N channel HEXFET power MOSFET, 40 V, 195 A, D2PAK, IRFS7437TRLPBF

Order No.: 31S3254
EAN: 4099879034168
MPN:
IRFS7437TRLPBF
SP001550174
Series: IRFS
Infineon Technologies
IRFS7437TRLPBF Infineon Technologies MOSFETs
Image may differ
Print
Key Specification:
Version N channel
max. Voltage 40 V
Max. current 195 A
drain-source on resistance RDS (on) max @VGS=10V 1.8 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.7973 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
637.84 € *
*incl. VAT plus shipping costs
Subject to prior sale
800 pcs.
0.7973 €
Description
Technical specifications
Download
Logistics
Compliance

MOSFET, IRFS7437TRLPBF, Infineon Technologies

Features

  • Improved gate, avalanche and dynamic dV/dt ruggedness
  • Fully characterized capacitance and avalanche SOA
  • Enhanced body diode dV/dt and dI/dt capability
  • Lead-free

Applications

  • Brushed motor drive applications
  • BLDC motor drive applications
  • Battery powered circuits
  • Half-bridge and full-bridge topologies
  • Synchronous rectifier applications
  • Resonant mode power supplies
  • OR-ing and redundant power switches
  • DC/DC and AC/DC converters
  • DC/AC Inverters
Technical specifications
Power loss 230 W
Max. current 195 A
drain-source on resistance RDS (on) max @VGS=10V 1.8 mΩ
max. operating temperature 175 °C
max. Voltage 40 V
Gate Charge Qg @10V (nC) 0.00000015 C
Assembly SMD
min. operating temperature -55 °C
Enclosure D2PAK
Version N channel
Articles of same specification 0
Logistics
Customs tariff number 85412900
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
