IRFS3306TRLPBF | Infineon Technologies

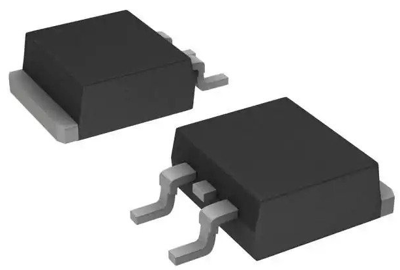

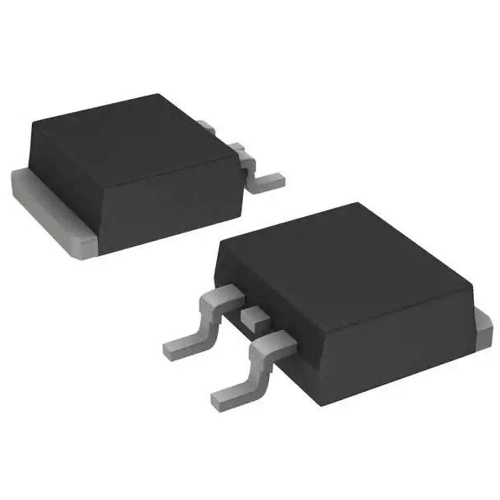

Infineon Technologies N channel HEXFET power MOSFET, D2PAK, IRFS3306TRLPBF
Order No.: 54S1067
MPN:
IRFS3306TRLPBF
SP001568056
Unit Price (€ / pc.)
1.9992 € *
Standard delivery time from the manufacturer is: 14 Weeks
Power MOSFET, IRFS3306TRLPBF, INFINEON
Features
- Improved gate
- Dynamic dv/dt rating
- RoHS compliant
- Halogen free
- Lead-free
Applications
- High efficiency synchronous rectification in SMPS
- Uninterruptible power supply
- High speed power switching
- Hard switched and high frequency circuits
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| drain-source on resistance RDS (on) max @VGS=10V | 4.2 mΩ | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -55 °C | |
| Enclosure | D2PAK | |
| Version | N channel | |
| Gate Charge Qg @10V (nC) | 0.00000012 C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 800 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
