IRF9530NPBF | Infineon Technologies

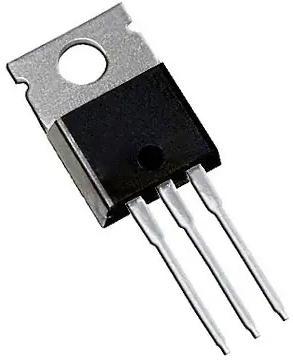

Infineon Technologies P-channel HEXFET power MOSFET, -100 V, -14 A, TO-220, IRF9530NPBF
Unit Price (€ / pc.)
0.8211 € *
Available: 1,973 pcs.
Available in 5 Days: 1,250 pcs. - if ordered today
Total Price:
0.82 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8211 €
10 pcs.
0.7616 €
100 pcs.
0.7259 €
500 pcs.
0.6188 €
1000 pcs.
0.5355 €
*incl. VAT plus shipping costs
Subject to prior sale
MOSFET, IRF9530NPBF, Infineon Technologies
The IRF9530NPBF is a power MOSFET rectifier that utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. The low thermal resistance of the TO-220 contributes to its wide acceptance throughout the industry.
Features
- Advanced process technology
- Ultra low on-resistance
- Dynamic dv/dt rating
- P-channel
Applications
- DC motors
- Inverters
- SMPS
- Lighting
- Load switches
- Battery powered applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power loss | 79 W | |
| Enclosure | TO-220 | |
| Gate Charge Qg @10V (nC) | 5.8x10<sup>-8</sup> C | |
| Max. current | -14 A | |
| max. Voltage | -100 V | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -55 °C | |
| Version | P-channel | |
| Assembly | THT | |
| drain-source on resistance RDS (on) max @VGS=10V | 200 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 1 piece |
| Country of origin | MX |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
