IRF530NPBF | Infineon Technologies

Infineon Technologies N channel HEXFET power MOSFET, 100 V, 17 A, TO-220, IRF530NPBF

Order No.: 24S3238
EAN: 4099879033178
MPN:
IRF530NPBF
Series: IRF

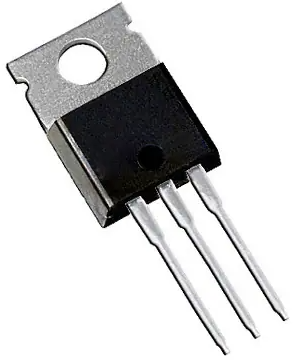

IRF530NPBF Infineon Technologies MOSFETs
Image may differ
Unit Price (€ / pc.)
0.4165 € *
Available: 117 pcs.
Available in 5 Days: 5,160 pcs. - if ordered today
Total Price:
0.42 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4165 €
10 pcs.
0.4046 €
50 pcs.
0.3927 €
100 pcs.
0.3689 €
500 pcs.
0.3451 €
*incl. VAT plus shipping costs
Subject to prior sale

MOSFET, IRF530NPBF, Infineon Technologies

The IRF530NPBF is a power MOSFET rectifier that utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. The low thermal resistance of the TO-220 contributes to its wide acceptance throughout the industry.

Features

  • Advanced process technology
  • Ultra low on-resistance
  • Dynamic dv/dt rating
  • Fast switching

Applications

  • DC motors
  • Inverters
  • SMPS
  • Lighting
  • Load switches
  • Battery powered applications
Technical specifications
Filter Property Value
Gate Charge Qg @10V (nC) 3.7x10<sup>-8</sup> C
max. operating temperature 175 °C
min. operating temperature -55 °C
Assembly THT
max. Voltage 100 V
Max. current 17 A
Power loss 70 W
Version N channel
Enclosure TO-220
drain-source on resistance RDS (on) max @VGS=10V 90 mΩ
Logistics
Property Value
Customs tariff number 85412900
Original Packaging Bar with 50 pieces
Country of origin MX
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
