IRF1324PBF | Infineon Technologies

Infineon Technologies N channel HEXFET power MOSFET, 24 V, 195 A, TO-220, IRF1324PBF

Order No.: 31S3064
EAN: 4099879033963
MPN:
IRF1324PBF
SP001561460
Series: NFET_IRFXXX
Infineon Technologies
IRF1324PBF Infineon Technologies MOSFETs

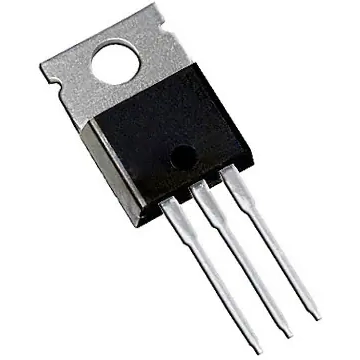

Image may differ
Print
Key Specification:
Version N channel
max. Voltage 24 V
Max. current 195 A
drain-source on resistance RDS (on) max @VGS=10V 2 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.5466 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
127.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
2.5466 €
Description
Technical specifications
Download
Logistics
Compliance

MOSFET, IRF1324PBF, Infineon Technologies

Features

  • Improved gate, avalanche and dynamic dV/dt ruggedness
  • Fully characterized capacitance and avalanche SOA
  • Enhanced body diode dV/dt and dI/dt capability
  • Lead-free

Applications

  • High efficiency synchronous rectification in SMPS
  • Uninterruptible power supply
  • High speed power switching
  • Hard switched and high frequency circuits
Technical specifications
max. Voltage 24 V
Power loss 300 W
drain-source on resistance RDS (on) max @VGS=10V 2 mΩ
Enclosure TO-220
Max. current 195 A
Gate Charge Qg @10V (nC) 1.6x10<sup>-7</sup> C
max. operating temperature 175 °C
Assembly THT
min. operating temperature -55 °C
Version N channel
Articles of same specification 0
Logistics
Country of origin CN
Customs tariff number 85412900
Original Packaging Bar with 1,490 pieces
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
