IPP120N04S3-02 | Infineon Technologies

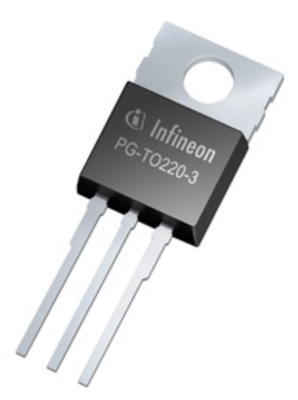

Infineon Technologies N channel OptiMOST power transistor, TO-220, IPP120N04S3-02
Order No.: 54S1074
MPN:
IPP120N04S3-02
SP000261228
Unit Price (€ / pc.)
6.1880 € *
Standard delivery time from the manufacturer is: 14 Weeks
Power transistor, IPP120N04S3-02, INFINEON
Features
- N-channel - enhancement mode
- MSL1 up to 260 °C peak reflow
- 175 °C operating temperature
- Green product (RoHS compliant)
- 100% avalanche tested
Applications
- OptiMOS-T2 40 V addresses all kind of EPS motor control (3-phase and H-bridge motors, HVAC fan control, electric pumps, especially in combination with PWM control)
- Thus OptiMOS-T2 40 V products based on Infineon’s advanced trench technology will be the benchmark for next generation of automotive applications in energy efficiency, CO2 reduction, e-drives
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| drain-source on resistance RDS (on) max @VGS=10V | 2.3 mΩ | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -55 °C | |
| Enclosure | TO-220 | |
| Version | N channel | |
| Gate Charge Qg @10V (nC) | 0.00000016 C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Bar with 50 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
