IPI80N06S407AKSA2 | Infineon Technologies

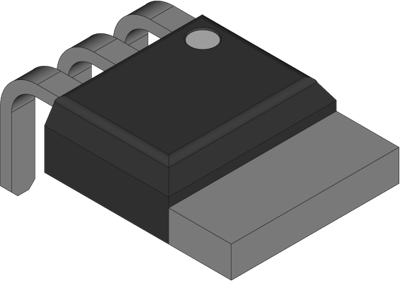

Infineon Technologies N channel OptiMOST2 power transistor, 60 V, 80 A, PG-TO262-3, IPI80N06S407AKSA2

Order No.: 88S9415
EAN: 4099879035394
MPN:
IPI80N06S407AKSA2
SP001028676
Series: IPI
Infineon Technologies
IPI80N06S407AKSA2 Infineon Technologies MOSFETs
Image may differ
Print
Key Specification:
Version N channel
max. Voltage 60 V
Max. current 80 A
drain-source on resistance RDS (on) max @VGS=10V 7.1 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
3.0702 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
30.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
3.0702 €
Description
Technical specifications
Download
Logistics
Compliance

MOSFET, IPI80N06S407AKSA2, Infineon Technologies

Features

  • N-channel
  • Enhancement mode
  • MSL1 up to 260°C peak reflow
  • Avalanche rated

Applications

  • Valves control
  • Solenoids control
  • Lighting
  • Single-ended motors
Technical specifications
Max. current 80 A
Version N channel
Enclosure PG-TO262-3
max. Voltage 60 V
max. operating temperature 175 °C
Power loss 79 W
drain-source on resistance RDS (on) max @VGS=10V 7.1 mΩ
Assembly THT
Gate Charge Qg @10V (nC) 4.3x10<sup>-8</sup> C
min. operating temperature -55 °C
Articles of same specification 0
Logistics
Original Packaging Bar with 50 pieces
Customs tariff number 85412900
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
