IPI600N25N3GAKSA1 | Infineon Technologies

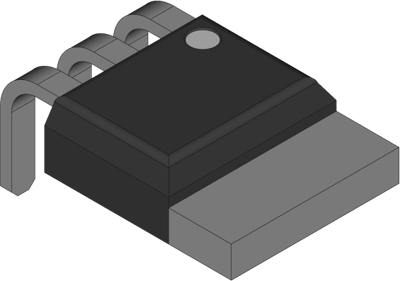

Infineon Technologies N channel OptiMOS3 power transistor, 250 V, 25 A, PG-TO262-3, IPI600N25N3GAKSA1
Unit Price (€ / pc.)
2.7251 € *
Standard delivery time from the manufacturer is: 98 Weeks
Total Price:
5.45 € *
Price list
Quantity
Price per unit*
2 pcs.
2.7251 €
10 pcs.
2.4633 €
50 pcs.
2.2372 €
250 pcs.
2.1182 €
500 pcs.
2.0111 €
*incl. VAT plus shipping costs
Subject to prior sale
MOSFET, IPI600N25N3GAKSA1, Infineon Technologies
Features
- N-channel
- Excellent gate charge
- Very low on-resistance
- Ideal for high-frequency switching and synchronous rectification
Applications
- Synchronous rectification for AC-DC SMPS
- Motor control for 48 V–110 V systems
- Isolated DC-DC converters
- Lighting for 110 V AC networks
- HID lamps
- Class D audio amplifiers
- Uninterruptible power supplies (UPS)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power loss | 136 W | |
| Max. current | 25 A | |
| drain-source on resistance RDS (on) max @VGS=10V | 60 mΩ | |
| max. operating temperature | 175 °C | |
| max. Voltage | 250 V | |
| Gate Charge Qg @10V (nC) | 8x10<sup>-9</sup> C | |
| Assembly | THT | |
| min. operating temperature | -55 °C | |
| Enclosure | PG-TO262-3 | |
| Version | N channel |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 50 pieces |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
