IPI120N04S402AKSA1 | Infineon Technologies

Infineon Technologies N channel OptiMOST2 power transistor, 40 V, 120 A, PG-TO262-3, IPI120N04S402AKSA1

Order No.: 88S9338
EAN: 4099879035325
MPN:
IPI120N04S402AKSA1
SP000764742
Series: IPI
Infineon Technologies
IPI120N04S402AKSA1 Infineon Technologies MOSFETs

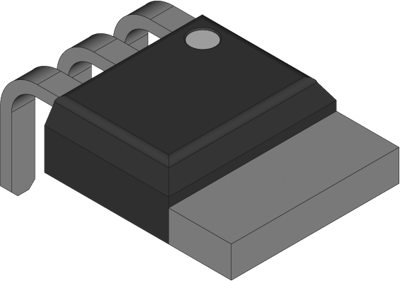

Image may differ
Print
Key Specification:
Version N channel
max. Voltage 40 V
Max. current 120 A
drain-source on resistance RDS (on) max @VGS=10V 2.1 mΩ

Ordering Information:

NCNR product is not cancelable/returnable
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.2495 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
624.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
1.2495 €
Description
Technical specifications
Download
Logistics
Compliance

MOSFET, IPI120N04S402AKSA1, Infineon Technologies

Features

  • N-channel
  • Enhancement mode
  • MSL1 up to 260°C peak reflow
  • Avalanche rated

Applications

  • EPS motor control
  • 3-phase and H-bridge motors
  • HVAC fan control
  • Electric pumps
Technical specifications
max. Voltage 40 V
Assembly THT
Power loss 158 W
drain-source on resistance RDS (on) max @VGS=10V 2.1 mΩ
max. operating temperature 175 °C
Version N channel
Gate Charge Qg @10V (nC) 1.03x10<sup>-7</sup> C
Enclosure PG-TO262-3
min. operating temperature -55 °C
Max. current 120 A
Articles of same specification 0
Logistics
Original Packaging Bar with 50 pieces
Customs tariff number 85412900
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
