IPD50P04P4L-11 | Infineon Technologies

Infineon Technologies P-channel OptiMOSP2 power transistor, -40 V, -50 A, DPAK, IPD50P04P4L-11

Order No.: 54S1032
MPN:
IPD50P04P4L-11
SP002325766
Infineon Technologies

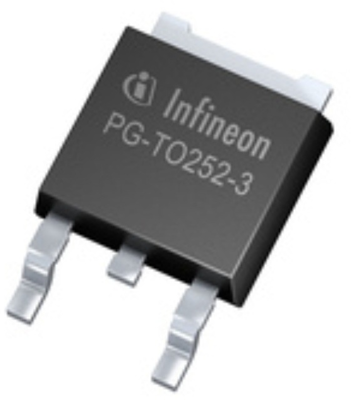

IPD50P04P4L-11 Infineon Technologies MOSFETs
Image may differ
Print
Key Specification:
Version P-channel
max. Voltage -40 V
Max. current -50 A
drain-source on resistance RDS (on) max @VGS=10V 10.6 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.9758 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
2,439.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
2500 pcs.
0.9758 €
Description
Technical specifications
Download
Logistics
Compliance

Power transistor, IPD50P04P4L-11, INFINEON

Features

  • P-channel - logic level - enhancement mode
  • AEC qualified
  • MSL1 up to 260 °C peak reflow
  • 175 °C operating temperature
  • Green product (RoHS compliant)

Applications

  • High-Side MOSFETs for motor bridges (half-bridges, H-bridges, 3-phase-motors)
  • Bridge configuration could be realized with 40 V P-channel as high side device with no need of charge pump
Technical specifications
Assembly SMD
drain-source on resistance RDS (on) max @VGS=10V 10.6 mΩ
max. operating temperature 175 °C
Max. current -50 A
min. operating temperature -55 °C
Enclosure DPAK
Version P-channel
max. Voltage -40 V
Gate Charge Qg @10V (nC) 4.5x10<sup>-8</sup> C
Articles of same specification 0
Logistics
Country of origin MY
Original Packaging Reel with 2,500 pieces
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
