IPD15N06S2L-64 | Infineon Technologies

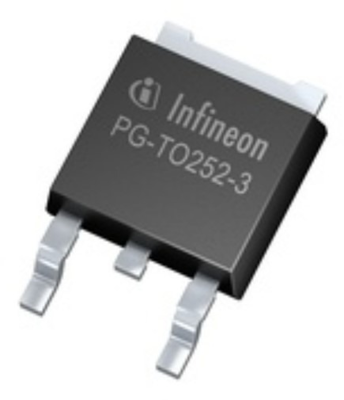

Infineon Technologies N channel OptiMOS power transistor, DPAK, IPD15N06S2L-64
Order No.: 54S1097
MPN:
IPD15N06S2L-64
SP001063644
Unit Price (€ / pc.)
0.5712 € *
Standard delivery time from the manufacturer is: 14 Weeks
Power transistor, IPD15N06S2L-64, INFINEON
Features
- N-channel logic level - enhancement mode
- MSL1 up to 260 °C peak reflow
- 175 °C operating temperature
- Ultra low Rds(On)
- 100% avalanche tested
Applications
- Valves control
- Solenoids control
- Lighting
- Single-ended motors
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| drain-source on resistance RDS (on) max @VGS=10V | 64 mΩ | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -55 °C | |
| Enclosure | DPAK | |
| Version | N channel | |
| Gate Charge Qg @10V (nC) | 1.1x10<sup>-8</sup> C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
