IPB80N04S404ATMA1 | Infineon Technologies

Infineon Technologies N channel OptiMOST2 power transistor, 40 V, 80 A, PG-TO263-3, IPB80N04S404ATMA1

Order No.: 88S9111
EAN: 4099879035271
MPN:
IPB80N04S404ATMA1
SP000646178
Series: IPB
Infineon Technologies
IPB80N04S404ATMA1 Infineon Technologies MOSFETs

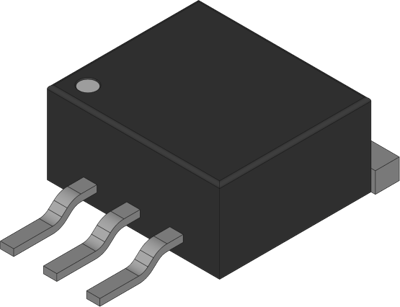

Image may differ
Print
Key Specification:
Version N channel
max. Voltage 40 V
Max. current 80 A
drain-source on resistance RDS (on) max @VGS=10V 4.2 mΩ

Ordering Information:

NCNR product is not cancelable/returnable
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.7497 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
749.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.7497 €
Description
Technical specifications
Download
Logistics
Compliance

MOSFET, IPB80N04S404ATMA1, Infineon Technologies

Features

  • N-channel
  • Enhancement mode
  • MSL1 up to 260°C peak reflow
  • Avalanche rated

Applications

  • EPS motor control
  • 3-phase and H-bridge motors
  • HVAC fan control
  • Electric pumps
Technical specifications
max. operating temperature 175 °C
max. Voltage 40 V
Version N channel
Gate Charge Qg @10V (nC) 3.3x10<sup>-8</sup> C
Assembly SMD
Max. current 80 A
drain-source on resistance RDS (on) max @VGS=10V 4.2 mΩ
Enclosure PG-TO263-3
Power loss 71 W
min. operating temperature -55 °C
Articles of same specification 0
Logistics
Original Packaging Reel with 1,000 pieces
Customs tariff number 85412900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
