BSS139H6327XTSA1 | Infineon Technologies

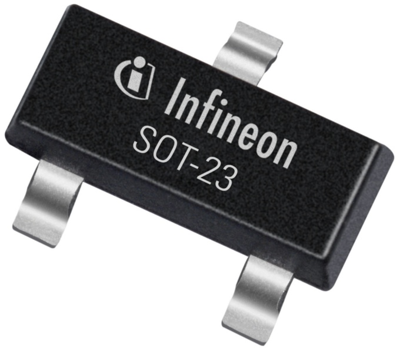

Infineon Technologies N channel SIPMOS small signal transistor, 250 V, 0.03 A, SOT-23, BSS139H6327XTSA1
Unit Price (€ / pc.)
0.5593 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
0.56 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5593 €
50 pcs.
0.5474 €
250 pcs.
0.5355 €
*incl. VAT plus shipping costs
Subject to prior sale
MOSFET, BSS139H6327XTSA1, Infineon Technologies
Features
- N-channel
- Depletion mode
- dv/dt rated
- Lead-free, Halogen-free, Rohs-compliant
Applications
- Automotive
- Consumer
- DC-DC
- eMobility
- Motor control
- Onboard charger
- Telecom
Technical specifications
| Filter | Property | Value |
|---|---|---|
| drain-source on resistance RDS (on) max @VGS=10V | 30 Ω | |
| Gate Charge Qg @10V (nC) | 3.5x10<sup>-9</sup> C | |
| max. operating temperature | 150 °C | |
| Power loss | 0.36 W | |
| Enclosure | SOT-23 | |
| Assembly | SMD | |
| Max. current | 0.03 A | |
| min. operating temperature | -55 °C | |
| max. Voltage | 250 V | |
| Version | N channel |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85412900 |
| Original Packaging | Reel with 168,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
