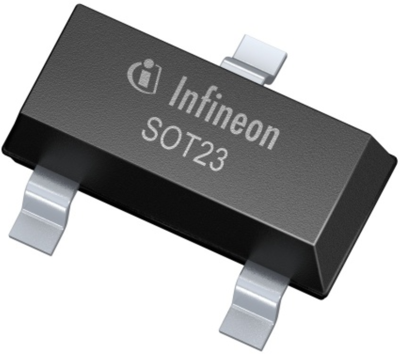

BSS138N | Infineon Technologies
Infineon Technologies N channel SIPMOS small signal transistor, 60 V, 0.23 A, SOT-23, BSS138N
Unit Price (€ / pc.)
0.2321 € *
Available: 12,384 pcs.
Total Price:
0.23 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2321 €
10 pcs.
0.1452 €
50 pcs.
0.1047 €
250 pcs.
0.0869 €
1000 pcs.
0.0750 €
*incl. VAT plus shipping costs
Subject to prior sale
MOSFET, BSS138N, Infineon Technologies
Features
- N-channel
- Enhancement mode
- Logic level
- Avalanche rated
- dv/dt rated
Applications
- Automotive
- Consumer
- DC-DC
- eMobility
- Motor control
- Onboard charger
- Telecom
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power loss | 0.36 W | |
| Max. current | 0.23 A | |
| drain-source on resistance RDS (on) max @VGS=10V | 3.5 Ω | |
| max. operating temperature | 150 °C | |
| max. Voltage | 60 V | |
| Gate Charge Qg @10V (nC) | 1.4x10<sup>-9</sup> C | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| Enclosure | SOT-23 | |
| Version | N channel |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 3,000 pieces |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
