BSP613PH6327XTSA1 | Infineon Technologies

Name: INFINEON SMD MOSFET PFET -60V -2,9A 130mΩ 150°C PG-SOT223-4 BSP613PH6327XTSA1
Brand: Infineon Technologies
SKU: 88S7556
Price: 1.48 EUR
Availability: OutOfStock

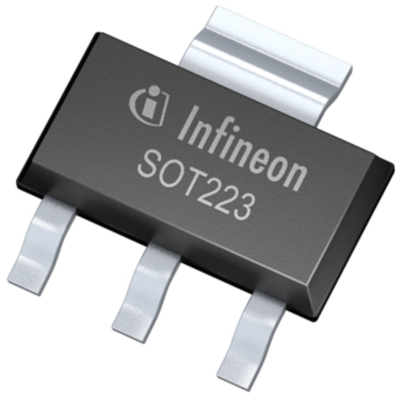

INFINEON SMD MOSFET PFET -60V -2,9A 130mΩ 150°C PG-SOT223-4 BSP613PH6327XTSA1

Order No.: 88S7556

Manufacturer: Infineon Technologies

Manufacturer SKU
BSP613PH6327XTSA1
SP001058788

Manufacturer series: BSP613

EAN: 4099879035028

about the green icons

Active

Total price

( 1.4756 € * / pcs.)

1.48 €

Next delivery: 2,000 pcs. on 2024-01-29

Quantity

Price per unit*

3 pcs.

1.4756 €

15 pcs.

1.2852 €

75 pcs.

1.1424 €

400 pcs.

1.0353 €

1000 pcs.

0.9401 €

*incl. VAT plus shipping costs

Add to Cart Show 2 variants

Please send price/quantity requests to info@buerklin.com

Description

Product by Infineon Technologies at Bürklin Elektronik

MOSFET, BSP613PH6327XTSA1, Infineon Technologies

Features

P-Channel
Enhancement mode
dv/dt rated
Avalanche rated

Applications

Power management functions
Motor control
On-board charger
DC-DC
Consumer
Logic level translators
Power MOSFET gate drivers

Technical specifications

	Version	P-channel
	drain-source on resistance RDS (on) max @VGS=10V	0.13 Ω
	Gate Charge Qg @10V (nC)	2.2x10<sup>-8</sup> C
	Enclosure	PG-SOT223
	max. Voltage	-60 V
	Max. current	-2.9 A
	max. operating temperature	150 °C
	min. operating temperature	-55 °C
	Assembly	SMD
	Power loss	1.8 W
