BSO615CGHUMA1 | Infineon Technologies

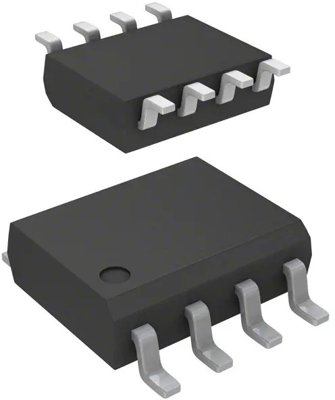

Infineon Technologies N/P-channel SIPMOS small signal transistor, 60 V, 3.1 A, SOIC-8, BSO615CGHUMA1
Unit Price (€ / pc.)
1.1543 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1.15 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1543 €
25 pcs.
0.9401 €
100 pcs.
0.7854 €
250 pcs.
0.6783 €
1000 pcs.
0.6069 €
*incl. VAT plus shipping costs
Subject to prior sale
Dual MOSFET, BSO615CGHUMA1, Infineon Technologies
The BSO615C G is a SIPMOS® dual N/P-channel enhancement-mode Small Signal Transistor for DC-to-DC converter and on-board charger applications. It is a complementary MOSFET with n-channel and a p-channel power transistor within the same package.
Features
- Avalanche rated
- Logic level
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power loss | 2 W | |
| Max. current | 3.1 A | |
| drain-source on resistance RDS (on) max @VGS=10V | 110 mΩ | |
| max. operating temperature | 150 °C | |
| max. Voltage | 60 V | |
| Gate Charge Qg @10V (nC) | 1.7x10<sup>-9</sup> C | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| Enclosure | SOIC-8 | |
| Version | N/P-channel |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ID |
| Original Packaging | Reel with 2,500 pieces |
| MSL | MSL 3 |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
