BSO110N03MSGXUMA1 | Infineon Technologies

Infineon Technologies N channel OptiMOS 3 M series power MOSFET, 30 V, 12.1 A, PG-DSO-8, BSO110N03MSGXUMA1

Order No.: 88S7453
EAN: 4099879034991
MPN:
BSO110N03MSGXUMA1
SP000446062
Series: BSO110
Infineon Technologies
BSO110N03MSGXUMA1 Infineon Technologies MOSFETs

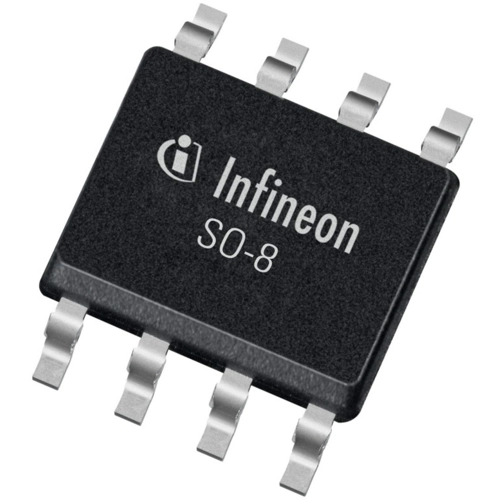

Image may differ
Print
Key Specification:
Version N channel
max. Voltage 30 V
Max. current 12.1 A
drain-source on resistance RDS (on) max @VGS=10V 11 mΩ

Ordering Information:

NCNR product is not cancelable/returnable
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.2785 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
696.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
2500 pcs.
0.2785 €
Description
Technical specifications
Download
Logistics

MOSFET, BSO110N03MSGXUMA1, Infineon Technologies

Features

  • Optimized for 5V driver application
  • Low FOM for high frequency SMPS
  • N-channel
  • Very low on-resistance

Applications

  • Onboard charger
  • Notebook
  • Mainboard
  • DC-DC
  • VRD/VRM
  • Motor control
  • LED
Technical specifications
max. Voltage 30 V
drain-source on resistance RDS (on) max @VGS=10V 11 mΩ
max. operating temperature 150 °C
min. operating temperature -55 °C
Gate Charge Qg @10V (nC) 1.5x10<sup>-8</sup> C
Max. current 12.1 A
Enclosure PG-DSO-8
Assembly SMD
Power loss 2.5 W
Version N channel
Articles of same specification 0
Logistics
Original Packaging Reel with 1 piece
Customs tariff number 85412900
