XMC1402F064X0200AAXUMA1 | Infineon Technologies

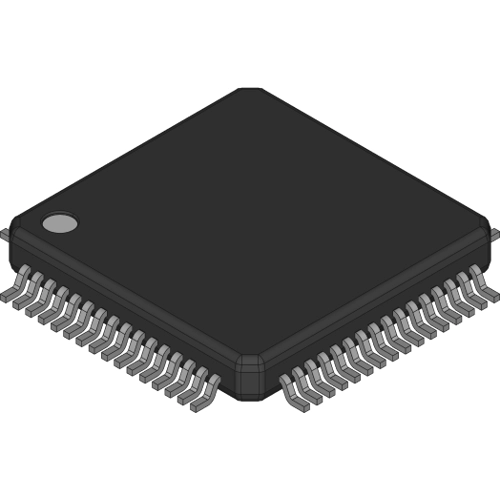

ARM Cortex M0 microcontroller, 32 bit, 48 MHz, LQFP-64, XMC1402F064X0200AAXUMA1
Unit Price (€ / pc.)
1.9992 € *
Standard delivery time from the manufacturer is: 13 Weeks
Microcontroller, XMC1402F064X0200AAXUMA1, Infineon Technologies
The XMC1402F064X0200AAXUMA1 is a 32-bit ARM Cortex-M0 CPU that addresses the real-time control needs of motor control, digital power conversion.
Features
- On-chip memory
- External crystal oscillator support
- Up to 56 Input/Output ports
- Temperature sensor
- Power on reset and brownout detector
Applications
- Industrial applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of I/Os | 48 | |
| Number of pins | 64 | |
| Processor core | ARM Cortex M0 | |
| Enclosure | LQFP-64 | |
| Clock frequency | 48 MHz | |
| Voltage | 1.8-5.5 V | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Version | flash | |
| Assembly | SMD | |
| Core Size | 32 bit | |
| Data RAM Size | 16 KB | |
| Memory size | 200 KB |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1,900 pieces |
| Customs tariff number | 85423190 |
