XE167H96F66LACFXUMA1 | Infineon Technologies

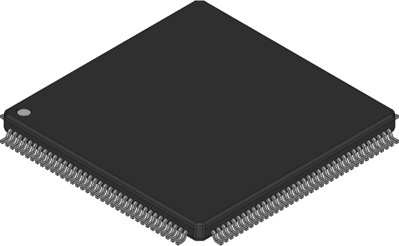

C166SV2 microcontroller, 16 bit, 66 MHz, LQFP-144, XE167H96F66LACFXUMA1
Unit Price (€ / pc.)
12.9234 € *
Standard delivery time from the manufacturer is: On Request
Microcontroller, XE167H96F66LACFXUMA1, INFINEON
The XE167H96F66LACFXUMA1 16 Bit Single-Chip Real Time Signal Controller is a singlechip CMOS microcontroller.
Features
- High-performance CPU with five-stage pipeline and MPU
- On-chip bootstrap loaders
- Single power supply from 3.0 V to 5.5 V
- Up to 12 Mbytes external address space for code and data
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of I/Os | 118 | |
| Number of pins | 144 | |
| Processor core | C166SV2 | |
| Enclosure | LQFP-144 | |
| Clock frequency | 66 MHz | |
| Voltage | 3-5.5 V | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Version | flash | |
| Assembly | SMD | |
| Core Size | 16 bit | |
| Data RAM Size | 82 KB | |
| Memory size | 768 KB |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1,000 pieces |
| Customs tariff number | 85423190 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
