XC886C6FFA5VACFXUMA1 | Infineon Technologies
XC800 microcontroller, 8 bit, 24 MHz, TQFP-48, XC886C6FFA5VACFXUMA1
Unit Price (€ / pc.)
2.5704 € *
Available: 0 pcs.
Leadtime: On Request **

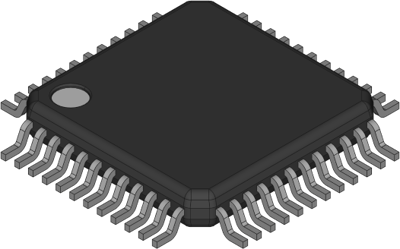

Microcontroller, XC886C6FFA5VACFXUMA1, Infineon Technologies
The XC886C6FFA5VACFXUMA1 is a high performance 8-bit single-chip microcontroller that has fast access to ROM or RAM memories without a wait state.
Features
- On-chip memory
- Power-on reset
- Capture/compare unit for PWM signal generation
- Two full-duplex serial interfaces
- Four 16-bit timers
Technical specifications
| Clock frequency | 24 MHz | |
| Assembly | SMD | |
| Enclosure | TQFP-48 | |
| Data RAM Size | 1.75 KB | |
| Processor core | XC800 | |
| Memory size | 24 KB | |
| Core Size | 8 bit | |
| Version | flash | |
| Voltage | 4.5-5.5 V | |
| min. operating temperature | -40 °C | |
| Number of I/Os | 34 | |
| max. operating temperature | 85 °C | |
| Number of pins | 48 |
Download
Logistics
| Customs tariff number | 85423190 |
| Original Packaging | Reel with 1,800 pieces |
