XC226796F66LACKXUMA1 | Infineon Technologies

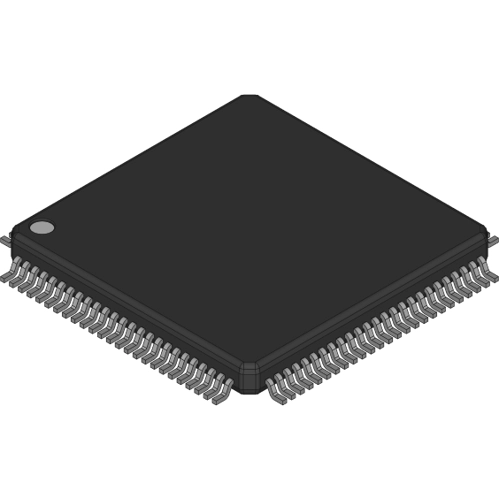

C166SV2 microcontroller, 16/32 bit, 66 MHz, LQFP-100, XC226796F66LACKXUMA1
Unit Price (€ / pc.)
9.163 € *
Standard delivery time from the manufacturer is: On Request
Mikrocontroller, XC226796F66LACKXUMA1, INFINEON
The XC226796F66LACKXUMA1 is a high-performance of full feature single-chip CMOS microcontroller. On-chip memory modules include program Flash program RAM and data RAM.
Features
- Parallel Flash Programming
- 80 MIPS performance
- Two very fast A/D converters
- On-chip debug support via JTAG interface
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of I/Os | 75 | |
| Number of pins | 100 | |
| Processor core | C166SV2 | |
| Enclosure | LQFP-100 | |
| Clock frequency | 66 MHz | |
| Voltage | 3-5.5 V | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Version | flash | |
| Assembly | SMD | |
| Core Size | 16/32 bit | |
| Data RAM Size | 82 KB | |
| Memory size | 768 KB |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1,400 pieces |
| Customs tariff number | 85423190 |
