XC164CM16F40FBAFXQMA1 | Infineon Technologies

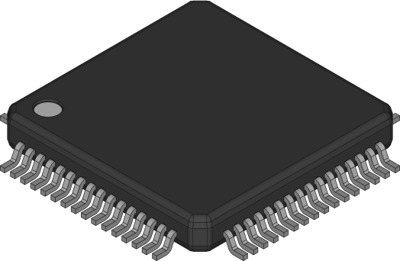

C166SV2 microcontroller, 16 bit, 40 MHz, LQFP-64, XC164CM16F40FBAFXQMA1
Unit Price (€ / pc.)
13.9825 € *
Standard delivery time from the manufacturer is: On Request
Microcontroller, XC164CM16F40FBAFXQMA1, INFINEON
The XC164CM16F40FBAFXQMA1 is a high-performance member of the single-chip CMOS microcontrollers.
Features
- High Performance 16 bit CPU with 5 Stage Pipeline
- 16 Mbytes Total Linear Address Space for Code and Data
- Two High-Speed-Synchronous Serial Channels
- On-Chip Bootstrap Loader
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of I/Os | 47 | |
| Number of pins | 64 | |
| Processor core | C166SV2 | |
| Enclosure | LQFP-64 | |
| Clock frequency | 40 MHz | |
| Voltage | 2.35-2.7 V | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Version | flash | |
| Assembly | SMD | |
| Core Size | 16 bit | |
| Data RAM Size | 8 KB | |
| Memory size | 128 KB |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 960 pieces |
| Customs tariff number | 85423190 |
