TLS208D1EJV33XUMA1 | Infineon Technologies

Voltage regulator, 3.3 VDC, 800 mA, positive, SOIC-8, TLS208D1EJV33XUMA1

Order No.: 89S2049
EAN: 4099879101662
MPN:
TLS208D1EJV33XUMA1
SP001120590
Infineon Technologies
default L

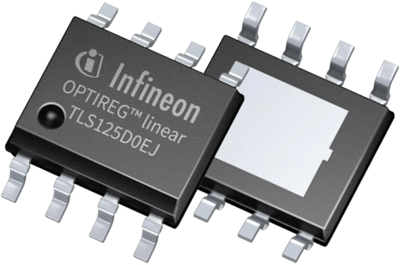

Image may differ
Unit Price (€ / pc.)
0.9044 € *
Available: 0 pcs.
Leadtime: 26 Weeks **
Total Price:
0.90 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2500 pcs.
0.9044 €

Linear regulator IC (LDOs), TLS208D1EJV33XUMA1, Infineon Technologies

The TLS208D1EJV33XUMA1 is a monolithic integrated linear voltage post regulator and especially designed for applications with a permanent connection to pre-regulators like DC-DC converters. The device is designed for the harsh environment of automotive applications. Therefore it is protected against overload, short circuit and overtemperature conditions by the implemented output current limitation and the overtemperature shutdown circuit.

Features

  • Adjustable reset threshold
  • Very low current consumption
  • Low dropout voltage
  • Wide temperature range
  • Over temperature shutdown

Applications

  • Infotainment
  • CD player, displays, camera and cluster
  • CPU supplies & memory
  • Post regulation after DC-DC converter
Technical specifications
Number of Regulators 1
Version fixed
Output voltage DC 3.3 VDC
Output current 800 mA
Input voltage AC 2.7-18 V
Enclosure SOIC-8
max. operating temperature 150 °C
min. operating temperature -40 °C
Assembly SMD
Polarity positive
Logistics
Customs tariff number 85423990
Original Packaging Reel with 2,500 pieces
