BCR321UE6327HTSA1 | Infineon Technologies

LED Driver, BCR321UE6327HTSA1, SOT-457

Order No.: 88S6825
EAN: 4099879105042
MPN:
BCR321UE6327HTSA1
SP000665918
Infineon Technologies
BCR321UE6327HTSA1 Infineon Technologies LED Driver ICs

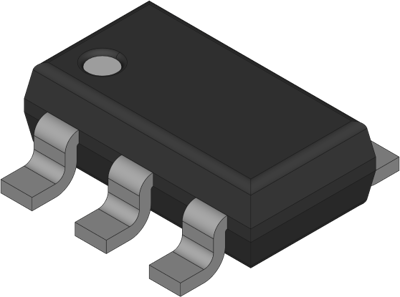

Image may differ
Unit Price (€ / pc.)
0.2404 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.24 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
0.2404 €

LED driver, BCR321UE6327HTSA1, INFINEON

The BCR321UE6327HTSA1 provides a low-cost solution for driving 0.5 W LEDs. It can be operated with a supply voltage of more than 16 V considering the voltage drop of the LED load which reduces the output voltage to the maximum rating of the driver.

Features

  • Easy paralleling of drivers to increase current
  • Digital PWM
  • RoHS compliant
  • Low side current control

Applications

  • Architectural LED lighting
  • LED strips for decorative lighting
  • Retail lighting in fridge, freezer case and vending machines
  • Emergency lighting
Technical specifications
Output current 250 mA
Input voltage 25 V
Frequency 10 kHz
Enclosure SOT-457
max. operating temperature 150 °C
Assembly SMD
Logistics
Customs tariff number 85423390
Original Packaging Reel with 3,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
