IKW30N60T | Infineon Technologies

Transistor IKW30N60T

Order No.: 24S3008
MPN:
IKW30N60T
Series: IKW
IKW30N60T Infineon Technologies IGBTs

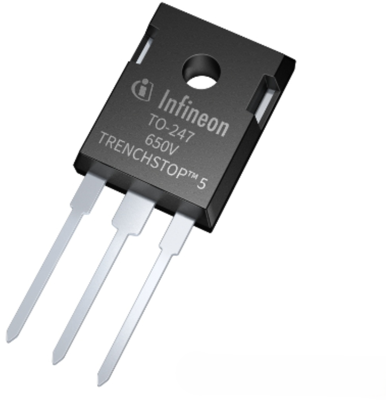

Image may differ
Unit Price (€ / pc.)
2.9274 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
2.93 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9274 €
25 pcs.
2.8322 €
50 pcs.
2.7370 €
100 pcs.
2.6299 €
250 pcs.
2.5942 €
*incl. VAT plus shipping costs
Subject to prior sale

Transistor, IKW30N60T, Infineon Technologies

Hard-switching 600 V, 30 A TRENCHSTOP IGBT3 copacked with full-rated free-wheeling diode in a TO-247 package, leads to significant improvement of static as well as dynamic performance of the device, due to combination of trench-cell and fieldstop concept. The combination of IGBT with soft recovery emitter controlled diode further minimizes the turn-on losses. The highest efficiency is reached due to the best compromise between switching and conduction losses.

Features

  • Lowest VCEsat drop for lower conduction losses
  • Low switching losses
  • Easy parallel switching capability due to positive temperature coefficient in VCEsat
  • Very soft, fast recovery anti-parallel Emitter Controlled Diode
  • High ruggedness, temperature stable behavior
  • Low EMI emissions
  • Low gate charge
  • Very tight parameter distribution

Applications

  • General purpose motor drive - variating frequency and voltage
  • Home appliances
  • Offline UPS - high frequency transformers
  • Telecommunication infrastructure
  • High ruggedness, temperature stable behavior
  • Low EMI emissions
  • Low gate charge
  • Very tight parameter distribution
Technical specifications
Filter Property Value
max. Voltage 600 V
Saturation voltage 2.05 V
Enclosure TO-247
Max. current 45 A
max. operating temperature 175 °C
Assembly THT
min. operating temperature -40 °C
Version single
Logistics
Property Value
Country of origin CN
Customs tariff number 85412900
Original Packaging Bar with 30 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
