IKW25T120 | Infineon Technologies

IGBT, 1200 V, 50 A, TO-247, Infineon Technologies IKW25T120

Order No.: 24S3006
MPN:
IKW25T120
Series: TrenchStop
IKW25T120 Infineon Technologies IGBTs

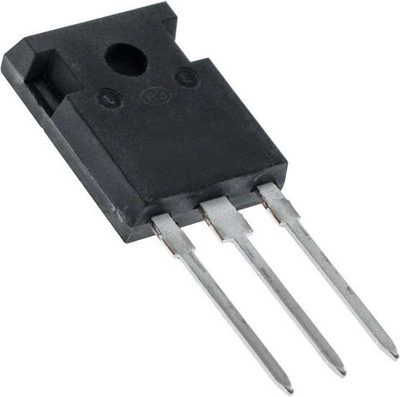

Image may differ
Unit Price (€ / pc.)
5.2598 € *
Standard delivery time from the manufacturer is: 99 Weeks
Total Price:
5.26 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2598 €
10 pcs.
4.7005 €
50 pcs.
4.5101 €
*incl. VAT plus shipping costs
Subject to prior sale

IGBT, IKW25T120, Infineon Technologies

IGBT in TrenchStop and Fieldstop technology with soft, fast recovery anti-parallel Emitter Controlled HE diode.

Features

  • Low EMI
  • Low Gate Charge
  • Pb-free lead plating; RoHS compliant
Technical specifications
Filter Property Value
max. Voltage 1200 V
Saturation voltage 2.2 V
Enclosure TO-247
Max. current 50 A
Power dissipation 190 W
max. operating temperature 150 °C
Assembly THT
min. operating temperature -40 °C
Switching loss b. switch off Eoff typ. 2.2 J
Version single
Switching loss at switch-on Eon typ. 2 J
Logistics
Property Value
Country of origin PH
Customs tariff number 85412900
Original Packaging Bar with 30 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
