Transistor IGW40T120

Order No.:  24S3002
MPN:
IGW40T120FKSA1
Series:  IGW40
EAN: 4099879032652
Infineon Technologies
default L
default S

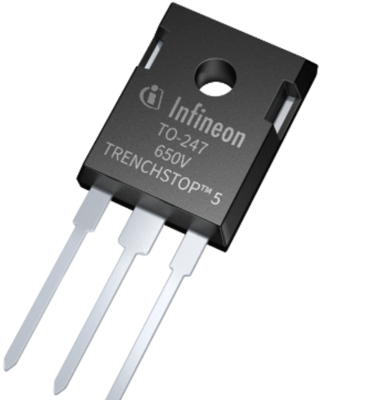

Images may differ
Unit Price (€ / pc.)
7.6636 € *
Available: 717 pcs.
Leadtime: 1 Week **
Total Price:
7.66 € *
Quantity
Price per unit*
1 pcs.
7.6636 €
30 pcs.
6.7473 €
120 pcs.
6.3784 €
270 pcs.
6.1523 €
1020 pcs.
5.8072 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description

IGBTs, IGW40T120, Infineon Technologies

The IGW40T120 is a transistor that provides significant improvement of static as well as dynamic performance of the device, due to combination of trench-cell and fieldstop concept.

Features

  • Low switching losses
  • Low EMI emissions
  • Low gate charge
  • High ruggedness, temperature stable behavior

Applications

  • Motor control and drives
  • Solutions for solar energy systems
  • Uninterruptible Power Supply (UPS)
Technical specifications
Version single
Enclosure TO-247
max. Voltage 1200 V
Max. current 40 A
max. operating temperature 150 °C
min. operating temperature -40 °C
Assembly THT
Saturation voltage 2.3 V
Switching loss b. switch off Eoff typ. 5.4 J
Switching loss at switch-on Eon typ. 5 J
Power dissipation 270 W
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85412900
Original Packaging Bar with 30 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
