ITS711L1 | Infineon Technologies

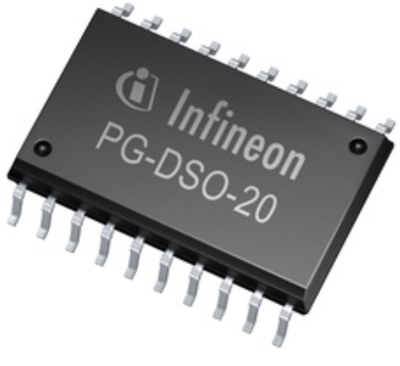

PROFET HS Switch 5.0…34V DSO-20-31 ITS711L1
Unit Price (€ / pc.)
3.7961 € *
Available: 267 pcs.
Available in 5 Days: 9,625 pcs. - if ordered today
High side switch, ITS711L1, Infineon Technologies
The ITS711L1 is a vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in smart SIPMOS technology.
Features
- Overload protection
- Current limitation
- Short circuit protection
- Overvoltage protection (including load dump)
- Reverse battery protection
- ESD protected
Applications
- Compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads in industrial applications
- All types of resistive, inductive and capacitive loads
- Replaces electromechanical relays, fuses and discrete circuits
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-8 | |
| Max. current | 1.9 A | |
| max. Voltage | 34 V | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -30 °C | |
| Version | N channel | |
| Assembly | SMD | |
| drain-source on resistance RDS (on) @ Tj = 25°C max | 200 mΩ | |
| Number of channels | 4 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1,000 pieces |
| Country of origin | AT |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
