BTS4142N | Infineon Technologies
Transistor BTS4142N
Order No.: 18S7246
EAN: 4099879035509
MPN:
BTS4142N
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.2015 € *
Available in 5 Days: 2,650 pcs. - if ordered today
Total Price:
22.02 € *
Price list
Quantity
Price per unit*
10 pcs.
2.2015 €
50 pcs.
2.0230 €
100 pcs.
1.9040 €
*incl. VAT plus shipping costs
Subject to prior sale
High side switch, BTS4142N, Infineon Technologies
The BTS4142N is a vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in smart SIPMOS technology.
Features
- Overload protection
- Current limitation
- Short circuit protection
- Overvoltage protection (including load dump)
- Reverse battery protection with external resistor
- Undervoltage shutdown with auto-restart and hysteresis
- ESD protected
Applications
- Compatible power switch for 12 V and 24 V DC grounded loads
- All types of resistive, inductive and capacitive loads
- Replaces electromechanical relays, fuses and discrete circuits
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | N channel | |
| Assembly | SMD | |

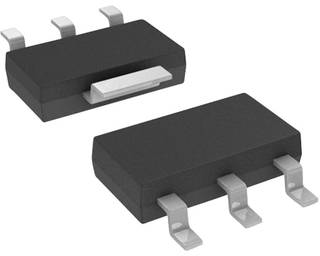

| Enclosure | SOT-223 | |
| Number of channels | 1 | |
| max. Voltage | 45 V | |
| Max. current | 1.4 A | |
| drain-source on resistance RDS (on) @ Tj = 25°C max | 200 mΩ | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85412900 |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
