BSP742TXUMA1 | Infineon Technologies
BSP742TXUMA1
Unit Price (€ / pc.)
1.2852 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1.29 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2852 €
25 pcs.
1.2495 €
50 pcs.
1.2019 €
100 pcs.
1.1662 €
250 pcs.
1.1424 €
*incl. VAT plus shipping costs
Subject to prior sale
High side power switch, BSP742TXUMA1, Infineon Technologies
High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.
Features
- Overload protection
- Current limitation
- Short circuit protection
- Shutdown when undervoltage
- Thermal shutdown with restart
- Fast demagnetizing of inductive loads
- Reverse battery protection with external resistor
- ESD- Protection
Applications
- Body Control Module
- Seat control
- Decentralized Mirror Module
- Decentralized Light Module
- Start&Stop transmission
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | N channel | |
| Assembly | SMD | |
| Number of channels | 1 | |
| Max. current | 0.8 A | |
| min. operating temperature | -40 °C | |
| max. Voltage | 34 V | |
| max. operating temperature | 150 °C | |

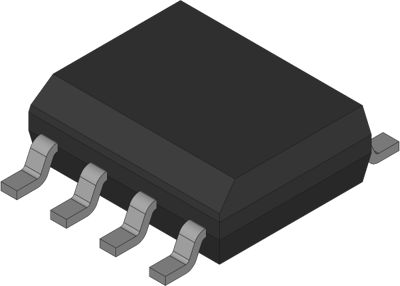

| Enclosure | SOIC-8 |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
