BSP452HUMA1 | Infineon Technologies
HS Switch 40V BSP452
Unit Price (€ / pc.)
1.6303 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
1.63 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6303 €
50 pcs.
1.5113 €
250 pcs.
1.4042 €
*incl. VAT plus shipping costs
Subject to prior sale

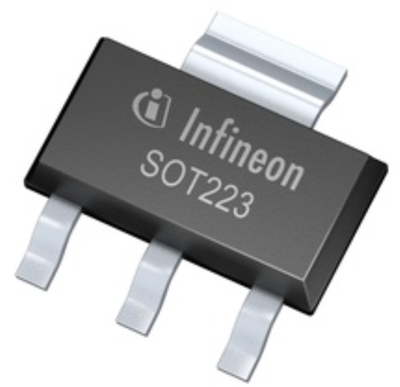

High side switch, BSP452HUMA1, Infineon Technologies
The BSP452HUMA1 is a vertical power FET with charge pump and has ground referenced CMOS compatible input, monolithically integrated in Smart SIPMOS technology. Fully protected by embedded protection functions.
Features
- High-side switch
- Short-circuit protection
- Overtemperature protection with hysteresis
- Overvoltage protection
- ESD protected
- Clamp of negative output voltage with inductive loads
Applications
- Compatible power switch for 12 V DC grounded loads
- All types of resistive, inductive and capacitive loads
- Replaces electromechanical relays and discrete circuits
Technical specifications
| Filter | Property | Value |
|---|---|---|
| drain-source on resistance RDS (on) @ Tj = 25°C max | 200 mΩ | |
| Number of channels | 1 | |
| max. Voltage | 34 V | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Max. current | 0.7 A | |
| Enclosure | SOT-223 | |
| Assembly | SMD | |
| Version | N channel |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85412900 |
| MSL | MSL 3 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
