AUIPS7091GTR | Infineon Technologies
HIGH SIDE SWITCH AUIPS7091GTR
Order No.: 53S1003
EAN: 4099879035622
MPN:
AUIPS7091GTR
SP001514878
Unit Price (€ / pc.)
1.7017 € *
Standard delivery time from the manufacturer is: 26 Weeks

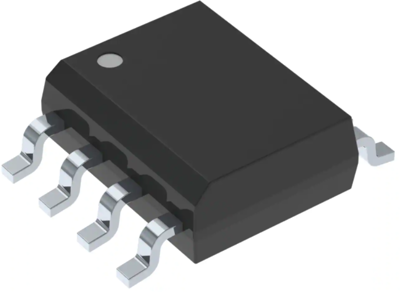

High side switch, AUIPS7091GTR, Infineon Technologies
The AUIPS7091GTR is a five terminal Intelligent power switch (IPS) with built in short circuit, overtemperature, ESD protection, inductive load capability and diagnostic feedback.
Features
- Over temperature shutdown (with auto-restart)
- Short circuit protection (current limit)
- Logic ground isolated from power ground
- ESD protected
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-8 | |
| Max. current | 5 A | |
| max. Voltage | 28 V | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Version | N channel | |
| Assembly | SMD | |
| drain-source on resistance RDS (on) @ Tj = 25°C max | 82 mΩ | |
| Number of channels | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 2,500 pieces |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
