IR2132SPBF | Infineon Technologies

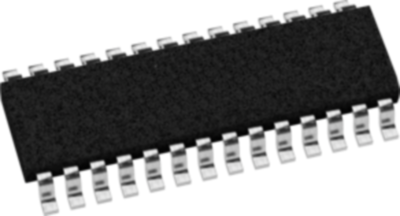

3-phase bridge driver, SOIC-28, Infineon Technologies IR2132SPBF
Order No.: 31S3037
EAN: 4099879102508
MPN:
IR2132SPBF
SP001544532
Unit Price (€ / pc.)
5.9976 € *
Available in 5 Days: 135 pcs. - if ordered today
Gate driver ICs, IR2132SPBF, Infineon Technologies
The IR2132SPBF is a high voltage, high speed power MOSFET and IGBT driver with three independent high and low side referenced output channels.
Features
- Floating channel designed for bootstrap operation
- Undervoltage lockout
- Outputs out of phase with inputs
- Matched propagation delay for both channels
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-28 | |
| Assembly | SMD | |
| Number of channels | 6 | |
| Version | half-bridge | |
| Output voltage DC | 10-20 V | |
| Input voltage | 2.2 V |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 25 pieces |
| MSL | MSL 3 |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
