IR2130PBF | Infineon Technologies

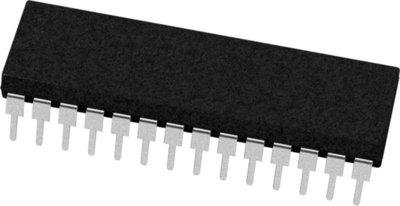

3-phase bridge driver, PDIP-28, Infineon Technologies IR2130PBF
Order No.: 40S8575
EAN: 4099879102690
MPN:
IR2130PBF
SP001547666
Unit Price (€ / pc.)
0.4165 € *
Standard delivery time from the manufacturer is: 2 Weeks
Gate driver ICs, IR2130PBF, Infineon Technologies
The IR2130PBF is a high voltage, high speed power MOSFET and IGBT driver with three independent high and low side referenced output channels.
Features
- Floating channel designed for bootstrap operation
- Undervoltage lockout
- Outputs out of phase with inputs
- Matched propagation delay for both channels
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | PDIP-28 | |
| Assembly | THT | |
| Number of channels | 6 | |
| Version | half-bridge | |
| Output voltage DC | 10-20 V | |
| Input voltage | 2.2 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
