IR2113SPBF | Infineon Technologies

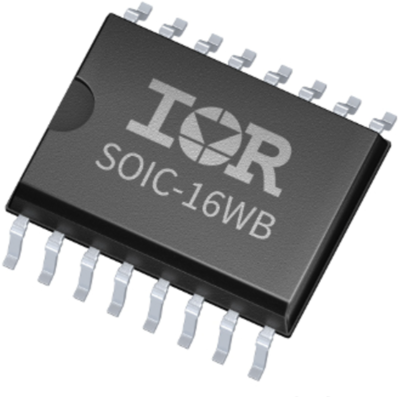

High speed power MOSFET and IGBT driver, SOIC-16, Infineon Technologies IR2113SPBF
Order No.: 31S3024
EAN: 4099879102430
MPN:
IR2113SPBF
SP001538040
Unit Price (€ / pc.)
2.9512 € *
Available in 5 Days: 4,945 pcs. - if ordered today
Total Price:
14.76 € *
Price list
Quantity
Price per unit*
5 pcs.
2.9512 €
25 pcs.
2.8441 €
100 pcs.
2.7370 €
*incl. VAT plus shipping costs
Subject to prior sale
Gate driver ICs, IR2113SPBF, Infineon Technologies
The IR2113SPBF is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels.
Features
- Floating channel designed for bootstrap operation
- Undervoltage lockout
- Outputs in phase with inputs
- Matched propagation delay for both channels
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-16 | |
| Assembly | SMD | |
| Number of channels | 2 | |
| Version | half-bridge | |
| Output voltage DC | 10-20 V | |
| Input voltage | 9.5 V |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 45 pieces |
| MSL | MSL 3 |
| Country of origin | MY |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
