IR2113PBF | Infineon Technologies

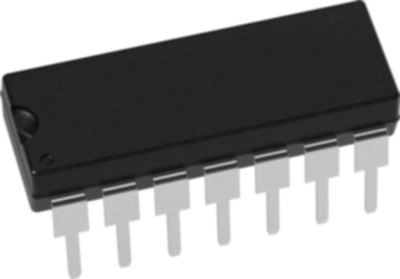

High speed power MOSFET and IGBT driver, PDIP-14, Infineon Technologies IR2113PBF
Order No.: 31S3022
EAN: 4099879102423
MPN:
IR2113PBF
SP001539158
Unit Price (€ / pc.)
2.2372 € *
Available: 80 pcs.
Available in 5 Days: 910 pcs. - if ordered today
Gate driver ICs, IR2113PBF, Infineon Technologies
The IR2113PBF is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels.
Features
- Floating channel designed for bootstrap operation
- Undervoltage lockout
- Outputs in phase with inputs
- Matched propagation delay for both channels
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | PDIP-14 | |
| Assembly | THT | |
| Number of channels | 2 | |
| Version | half-bridge | |
| Output voltage DC | 10-20 V | |
| Input voltage | 9.5 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | MY |
| Original Packaging | Bar with 25 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
